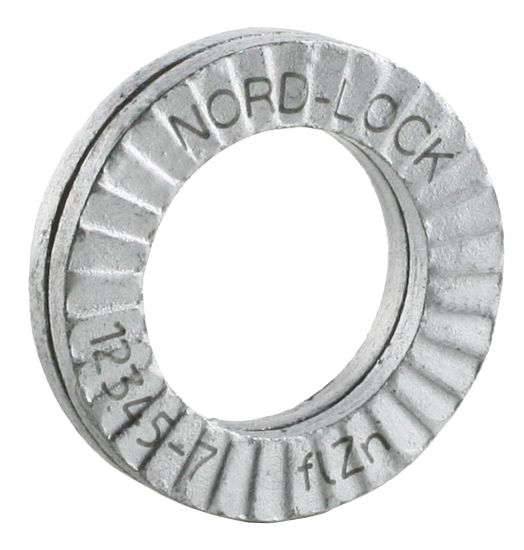

NORD-LOCK DOUBLE SERRATED BOUNDED WASHER WITH SLOPE EFFECT STAINLESS STEEL A4 - T55-74990B INOX A4 (Model : T55-74990B)

Home » Tools » Maintenance, fixing and gluing » Fasteners and fixing systems » NORD-LOCK DOUBLE SERRATED BOUNDED WASHER WITH SLOPE EFFECT STAINLESS STEEL A4 - T55-74990B INOX A4 (Model : T55-74990B)

Photos

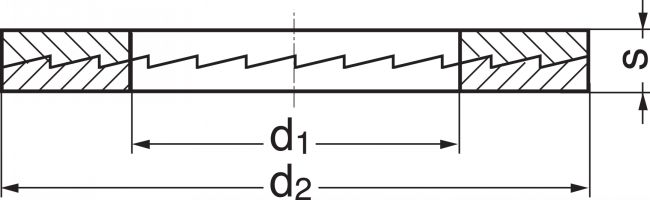

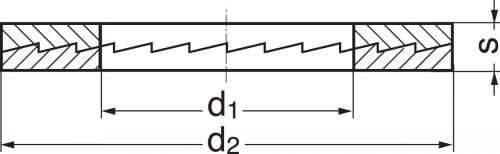

Dessins techniques

EXAMPLE OF ORDER :

Référence FI T55-74990B4

Information

Rondelle "Eventail" à dentures extérieures "AZ" - DIN 6798 A - Inox A2 - modèle T55-62513B

Files

• Maintenance, fixation et collage

Schéma 0

Quantity



CAD

Avail. --------- All NC D

Price * ----------- All NC

Ref ---- All T55-74990B-4 T55-74990B-5 T55-74990B-6 T55-74990B-8 T55-74990B-10 T55-74990B-12 T55-74990B-16 T55-74990B-20 T55-74990B-22 T55-74990B-24

+

d nominal -------------- All M4 M5 M6 M8 M10 M12 M16 M20 M22 M24

d1 (mm) ----------- All 4,4 5,4 6,5 8,7 10,7 13 17 21,4 23,4 25,3

d2 (mm) ----------- All 7,6 9 10,8 13, 16,6 19,5 25,4 30,7 34,5 39

s (mm) --------- All 2,2 2 3 3,2



NC

NC

T55-74990B-4

M4

4,4

7,6

2,2



NC

NC

T55-74990B-5

M5

5,4

9

2,2



D

NC

T55-74990B-6

M6

6,5

10,8

2,2



D

NC

T55-74990B-8

M8

8,7

13,

2



D

NC

T55-74990B-10

M10

10,7

16,6

2



NC

NC

T55-74990B-12

M12

13

19,5

2



NC

NC

T55-74990B-16

M16

17

25,4

3



NC

NC

T55-74990B-20

M20

21,4

30,7

3



NC

NC

T55-74990B-22

M22

23,4

34,5

3,2



NC

NC

T55-74990B-24

M24

25,3

39

3,2
