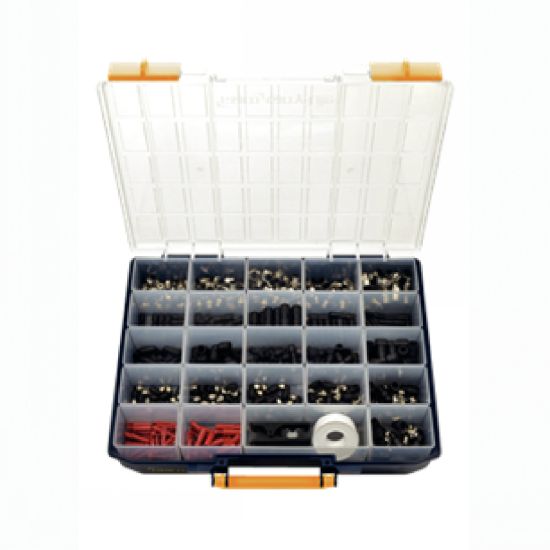

3150 00 01 57BP CASE FITTINGS
Photos
Dessins techniques
| EXAMPLE OF ORDER : | Référence 3150 00 01 57BP |
Information

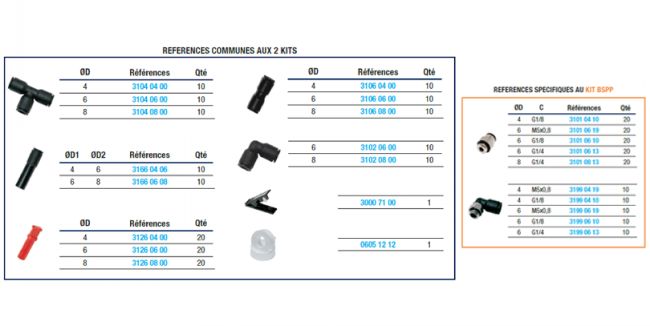

Composition
Raccord Désignation Quantité
3101 04 10 PIQ DRT D4 1/8" CYL 20
3101 06 10 PIQ MALE 1/8"CYL DIA 6 20
3101 06 13 PIQ MALE CYLIND. 20
3101 06 19 PIQ MALE CYLIND. 20
3101 08 13 PIQ.DROIT 1/4 CYL DIA 8 20
3106 04 00 UNION DBLE 10
3106 06 00 UNION DBLE 10
3106 08 00 UNION DBLE 10
3166 04 06 REDUCTION 10
3166 06 08 REDUCTION 10
3102 06 00 EQUERRE EGALE DIA 6 10
3102 08 00 EQUERRE EGALE DIA 8 10
3104 04 00 TE EGALE DIA 4 10
3104 06 00 TE EGALE DIA 6 10
3104 08 00 TE EGAL 10
3199 04 10 EQ PIQ CYLIND. 10
3199 04 19 EQ PIQ CYLIND. 10
3199 06 10 EQ PIQ CYLIND. 10
3199 06 13 EQ PIQ CYLIND. 10
3199 06 19 EQ PIQ CYLIND. 10
3126 04 00 BOUCHON 20
3126 06 00 BOUCHON 20
3126 08 00 BOUCHON 20
0605 12 12 TAP 1
3000 71 00 TUBE CUTTER 1
3199 08 13 EQ PIQ CYLIND. 10
