STANDARD T-BOLTS FOR THICK AND REINFORCED PIPE ACIER INOXYDABLE 316 OU A4 Acier inoxydable 316 ou A4 (Model : H82-TBSSM)

H82-TBSSM STANDARD T-BOLTS FOR THICK AND REINFORCED PIPE ACIER INOXYDABLE 316 OU A4 Acier inoxydable 316 ou A4

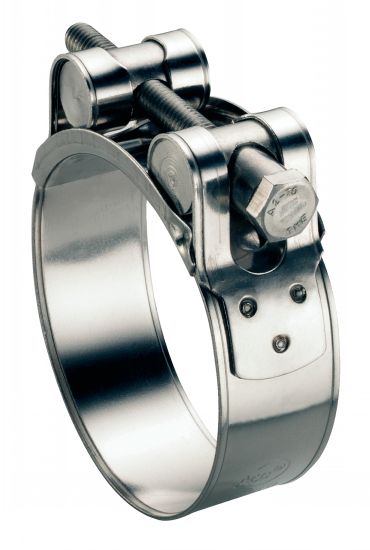

Photos

Collier tourillons
Standard t-bolts for thick and reinforced pipe acier inoxydable 316 ou a4 (Photo #2)

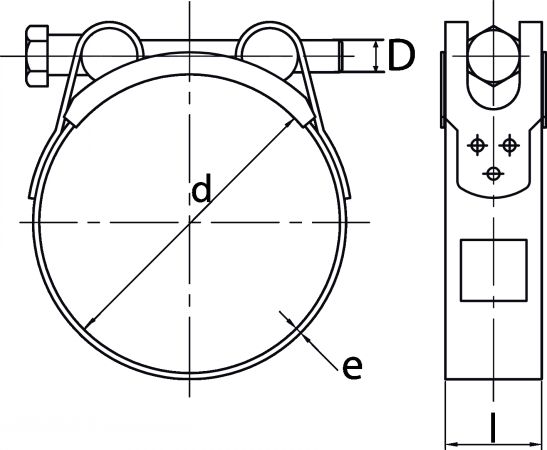

Dessins techniques

Collier tourillons
ACTON
EXAMPLE OF ORDER : Référence
TBSSM 23-25

Information

Recommended torque :
17-19 to 26-28 = 5Nm ; 29-31 to 60-63 = 15Nm ; 64-67 to 122-130 = 25Nm ; 131-139 to 240-252 = 40Nm

Must be strongly tightened. If necessary, mount two T-bolts at each pipe end with screws 180°.

Files

Schéma 0

Quantity

CAD
+

NC
NC
TBSSM 17-19
17-19
5
0,45
18,15
4,000

D
NC
TBSSM 20-22
20-22
5
0,45
18,15
4,400

D
NC
TBSSM 23-25
23-25
5
0,45
18,15
4,800

NC
NC
TBSSM 26-28
26-28
5
0,45
18,15
5,200

NC
NC
TBSSM 29-31
29-31
5
0,65
20,15
5,800

NC
NC
TBSSM 32-35
32-35
5
0,65
20,15
6,200

NC
NC
TBSSM 36-39
36-39
6
0,65
20,15
6,400

NC
NC
TBSSM 40-43
40-43
6
0,65
20,15
6,800

NC
NC
TBSSM 44-47
44-47
6
0,85
22,15
7,200

NC
NC
TBSSM 48-51
48-51
6
0,85
22,15
7,600

D
NC
TBSSM 52-55
52-55
6
0,85
22,15
8,000

NC
NC
TBSSM 56-59
56-59
6
0,85
22,15
8,400

NC
NC
TBSSM 60-63
60-63
6
0,85
22,15
9,200

NC
NC
TBSSM 64-67
64-67
8
0,85
22,15
10,000

NC
NC
TBSSM 68-73
68-73
8
0,85
24,15
10,800

NC
NC
TBSSM 74-79
74-79
8
0,85
24,15
11,600

D
NC
TBSSM 80-85
80-85
8
0,85
24,15
12,400

NC
NC
TBSSM 86-91
86-91
8
0,85
24,15
13,500

NC
NC
TBSSM 92-97
92-97
8
0,85
24,15
13,900

NC
NC
TBSSM 98-103
98-103
8
0,85
24,15
14,200

NC
NC
TBSSM 104-112
104-112
8
0,85
24,15
15,000

NC
NC
TBSSM 113-121
113-121
8
0,85
24,15
15,500

NC
NC
TBSSM 122-130
122-130
8
0,85
24,15
15,900
