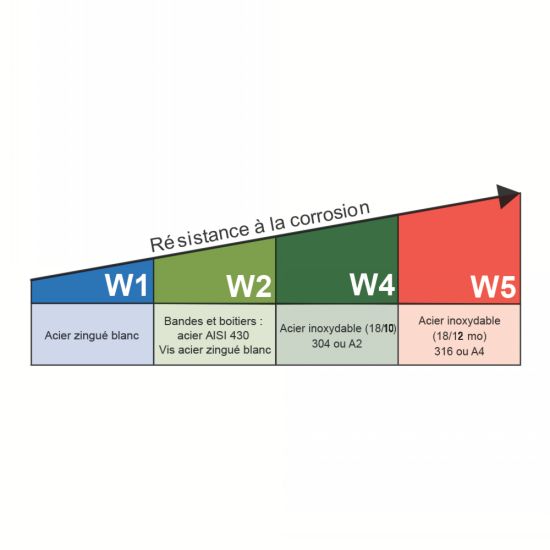

STANDARD T-BOLTS FOR THICK AND REINFORCED PIPE ACIER INOXYDABLE 304 OU A2 Acier inoxydable 304 ou A2 (Model : H82-TBSS)

Home » Products » Pneumatic Elements » Accessories » Hose clips » STANDARD T-BOLTS FOR THICK AND REINFORCED PIPE ACIER INOXYDABLE 304 OU A2 Acier inoxydable 304 ou A2 (Model : H82-TBSS)

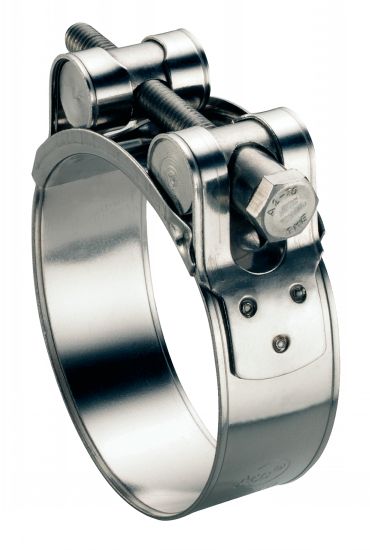

Photos

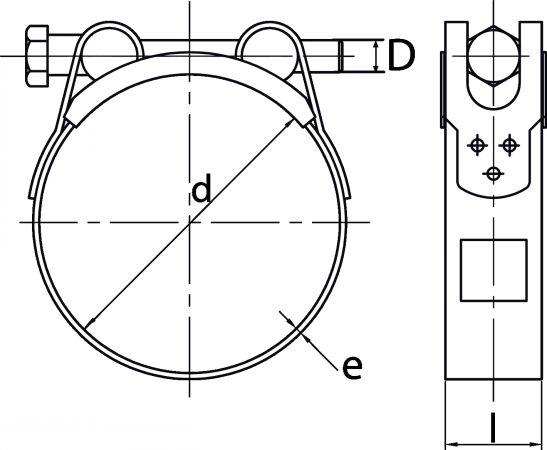

Dessins techniques

EXAMPLE OF ORDER :

Référence TBSS 17-19

Information

Recommended torque :
17-19 to 26-28 = 5Nm ; 29-31 to 60-63 = 15Nm ; 64-67 to 122-130 = 25Nm ; 131-139 to 240-252 = 40Nm

Must be strongly tightened. If necessary, mount two T-bolts at each pipe end with screws 180°.

Files

Schéma 0

Quantity



CAD

Avail. --------- All D NC

Price * ----------- All NC

Ref ---- All TBSS 17-19 TBSS 20-22 TBSS 23-25 TBSS 26-28 TBSS 29-31 TBSS 32-35 TBSS 36-39 TBSS 40-43 TBSS 44-47 TBSS 48-51 TBSS 52-55 TBSS 56-59 TBSS 60-63 TBSS 64-67 TBSS 68-73 TBSS 74-79 TBSS 80-85 TBSS 86-91 TBSS 92-97 TBSS 98-103 TBSS 104-112 TBSS 113-121 TBSS 122-130 TBSS 131-139 TBSS 140-148 TBSS 149-161 TBSS 162-174 TBSS 175-187 TBSS 188-200 TBSS 201-213 TBSS 214-226 TBSS 227-239 TBSS 240-252

+

d (mm) --------- All 17-19 20-22 23-25 26-28 29-31 32-35 36-39 40-43 44-47 48-51 52-55 56-59 60-63 64-67 68-73 74-79 80-85 86-91 92-97 98-103 104-112 113-121 122-130 131-139 140-148 149-161 162-174 175-187 188-200 201-213 214-226 227-239 240-252

D (mm) --------- All 5 6 8 10

e (mm) --------- All 0,45 0,65 0,85 1

l (mm) --------- All 18 20 22 24 26

Poids (kg/100) ---------------------- All 4,000 4,400 4,800 5,200 5,800 6,200 6,400 6,800 7,200 7,600 8,000 8,400 9,200 10,000 10,800 11,600 12,400 13,500 13,900 14,200 15,000 15,500 15,900 22,400 23,000 24,200 25,600 26,300 27,400 28,400 29,000 30,000 32,500



D

NC

TBSS 17-19

17-19

5

0,45

18

4,000



D

NC

TBSS 20-22

20-22

5

0,45

18

4,400



D

NC

TBSS 23-25

23-25

5

0,65

18

4,800



D

NC

TBSS 26-28

26-28

5

0,65

18

5,200



NC

NC

TBSS 29-31

29-31

6

0,65

20

5,800



NC

NC

TBSS 32-35

32-35

6

0,65

20

6,200



NC

NC

TBSS 36-39

36-39

6

0,65

20

6,400



D

NC

TBSS 40-43

40-43

6

0,65

20

6,800



D

NC

TBSS 44-47

44-47

6

0,85

22

7,200



NC

NC

TBSS 48-51

48-51

6

0,85

22

7,600



D

NC

TBSS 52-55

52-55

6

0,85

22

8,000



NC

NC

TBSS 56-59

56-59

6

0,85

22

8,400



D

NC

TBSS 60-63

60-63

6

0,85

22

9,200



NC

NC

TBSS 64-67

64-67

8

0,85

22

10,000



NC

NC

TBSS 68-73

68-73

8

0,85

24

10,800



NC

NC

TBSS 74-79

74-79

8

0,85

24

11,600



D

NC

TBSS 80-85

80-85

8

0,85

24

12,400



D

NC

TBSS 86-91

86-91

8

0,85

24

13,500



NC

NC

TBSS 92-97

92-97

8

0,85

24

13,900



NC

NC

TBSS 98-103

98-103

8

0,85

24

14,200



D

NC

TBSS 104-112

104-112

8

0,85

24

15,000



NC

NC

TBSS 113-121

113-121

8

0,85

24

15,500



NC

NC

TBSS 122-130

122-130

8

0,85

24

15,900



NC

NC

TBSS 131-139

131-139

10

1

26

22,400



NC

NC

TBSS 140-148

140-148

10

1

26

23,000



NC

NC

TBSS 149-161

149-161

10

1

26

24,200



NC

NC

TBSS 162-174

162-174

10

1

26

25,600



NC

NC

TBSS 175-187

175-187

10

1

26

26,300



NC

NC

TBSS 188-200

188-200

10

1

26

27,400



NC

NC

TBSS 201-213

201-213

10

1

26

28,400



NC

NC

TBSS 214-226

214-226

10

1

26

29,000



NC

NC

TBSS 227-239

227-239

10

1

26

30,000



NC

NC

TBSS 240-252

240-252

10

1

26

32,500
