Ressort à gaz inox - Tige diamètre 10 à rotule - B1-RAG-10R-INOX

B1-RAG-10R-INOX RESSORT À GAZ INOX - TIGE DIAMÈTRE 10 À ROTULE FORCE MAXI 1200N

Photos

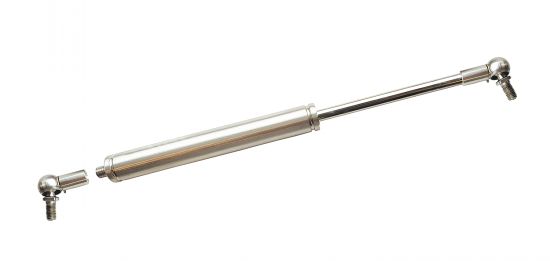

Ressort à gaz inox - Tige diamètre 10 à rotule

Dessins techniques

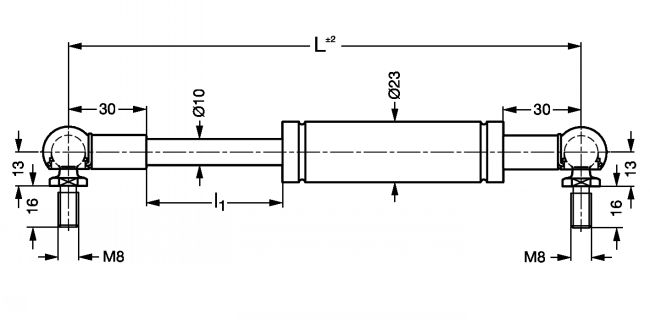

Ressort à gaz inox - Tige diamètre 10 à rotule
Voir les produits associés
Direct Transmission
EXEMPLE DE COMMANDE : Référence - Gonflage
B1-RAG-10R-INOX-100-200

Informations

Ressort à gaz Inox - Tige diamètre 10 à rotule - Force maxi 1200 N - Modèle B1-RAG-10R-INOX

Matières
- Acier Inoxydable :
. Tige AISI 316L.
. Corps AISI 316Ti.

Montage
- Implanter les ressorts «tige vers le bas».
- Les ressorts ne doivent pas subir d'efforts latéraux.
- Températures d'utilisation : de -20°C à +80°C.
- Variation de la poussée en fonction de la température :
. F1 x 0,85 à -25°C.
. F1 x 1 à +20°C.
. F1 x 1,15 à +60°C.

Ne jamais percer un ressort à gaz ni le porter à une température supérieure à 100°C.
